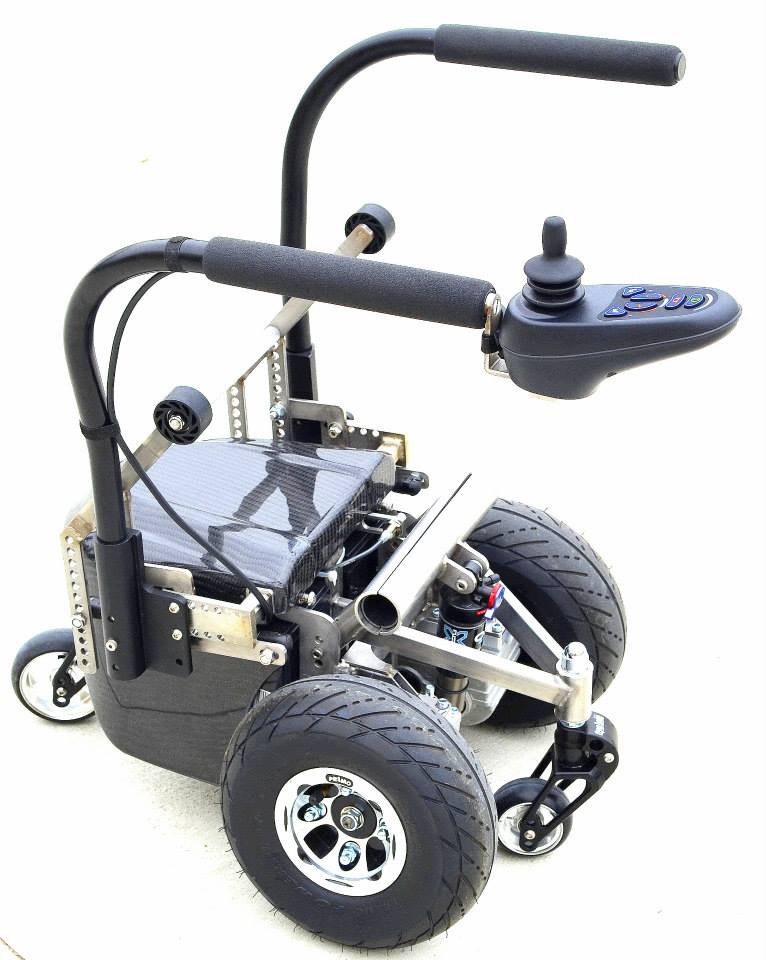

Spinergy ZX-1 Power Add-On

Extend your freedom with our revolutionary ZX-1 Power Add-On offering lifestyle enhancing mobility. The ZX-1’s modern, lightweight design is highly maneuverable, easy to operate and is packed with features allowing you to engage in more day-to-day activities with style.

Click here to download the Brochure.

The ZX-1 has two drive motors, each having a power rating of 320 Watts (746 Watts is equivalent to one horsepower). The joystick controller can be ordered for either left-hand or right-hand operation.

ZX-1 User Profile

There are many different type of users that the ZX-1 is a good fit for. Generally, they are those that have upper body limitations, those who do not want a large power chair, and those who do not need all of the features of a power chair or use it full-time.

Users who require a power chair sometimes but prefer to stay active in a manual chair.
Users who require a power chair but need the portability of a manual chair.
Users who are not able to transport a power chair.
Users who do not require full power chair features, like tilt-and-recline, high speed, etc, .
Users who require basic power chair functionality with a small footprint.
Users who need to easily separate the manual chair for accessibility.
Users who have upper body and limb weakness, strain and/or injuries.
Users who are in recovery post shoulder surgery.
Users wishing to minimise the risk of shoulder injury.
Users who fatigue over the course of the day.
Users who are not able to use other power add-on options such as the SmartDrive or power handbikes because of inadequate upper body, arm and hand control due to paralysis, hemiplegia/hemiparesis, cerebral palsy, multiple sclerosis, joint disorders, muscular disorders, and injuries and amputations.

ZX-1 Specifications

Range: 8 km / 5 mi based upon 250 lbs. occupant (16 km / 10 mi with Lithium)
Maximum Speed: 6.5 kph / 4 mph (5 speed levels)
Weight including Batteries: 38 kg / 84 lbs. (34 kg / 75 lbs. with Lithium)
Maximum curb clearance: 5 cm / 2 in
Maximum operation incline 6 degrees
Weight Limit: 112 kg / 250 lbs.
Batteries: Two Universal Power Group (UPG) UB12150 12V 15Ah AGM batteries with a MK Charger LS 24/4.(Lithium Optional)
Power: Two 320w 24v DC 70 amp brushed gear motors
Controller: PG Drives Technology VR2 Actuator Control
Actuator: Firgelli Automations 3″ Stroke 200 lbs Force Linear Actuator, Model: FA-240-s-12-3
Brake systems: Electromagneticand a disc park brake
Drive wheels: Pr1mo 2.15″ rims with Pneumatic Pr1mo Powerplay 3.00-4 3.00-4, 10″ x 3″, 250 x 85 tires, Max 35 PSI.
Forks: FrogLegs Ultra-Sport Suspension Fork with Shock Absorbing Polymer (aft)
Casters: FrogLegs EPIC Aluminum 4 x 1.4″ Wide Softroll Caster (front) and EPIC Aluminum 3 x 1.4″ Wide Softroll Caster (aft)
Shocks: Manitou Radium Shock (Comp)
Gas Springs: 7.5″ Columbia Struts CS750-40 (40 = force) used for anti-tilt mechanism
Frame: Stainless steel
Cover: Carbon fiber
Safety: Built in Anti-Tilt Mechanism
Control System: Joystick operated for right or left hand. Battery Level Charge Indicator located on Joystick with LED Lights
Options: 4” Armrest Extensions, Offroad Tires

ZX-1 Chair Requirements

Rigid frame with a horizontal round camber tube
Camber tube mounted level with wheelchair rear wheel axles
Free of obstructions under camber tube
Camber Tube Diameter 1.25″, 1.375″, or 1.5″
Unobstructed camber tube Length 9″ or greater
Space Between Anti-Tip Mounts 9″ or greater
24”, 25” or 26” wheelchair rear wheels
15”-20” rear seat width (14” can be used with some configurations)
Minimum of 6” of space between camber tube and front caster wheels or footplate
Center of gravity set at 5” or less
If armrests exist on wheelchair, they may need to be removed, and possibly also the armrest brackets.
